Gear

60D

Being the sort person that thrives on being out on extended adventures in remote places as wells  having the utmost desire to be as completely self contained as possible, and also being of the the sort who needs to utilize a certain degree of technology in order to accomplish my mission as a photographer, I thought I’d share some of that technology here.

IMG_7237

I tend to, on long road-worthy bike trips, carry what I need. In other words, on extended trips that are not intended on “light and fast”, I don’t go light, generally speaking.  That said, I carry a heavy Canon 60D DSLR, a 24-105mm lens, a 10mm super wide/fisheye lens, an intervalmometer, 3 camera batteries, a tripod, a 12 volt Canon charger, 2 hard drives, a laptop, an ipod, and a basic cell phone.  Holy shit that’s a lot of junk to be hauling into the woods!   Word.

Keeping things charged and protected can be a real pain in the arse on long trips into remote areas. Especially when you may be encountering a certain degree of discomfort or hardship; day after day of rain, grueling hill climbs, lack of food or water, mechanical breakdowns, or the threat of predatory animals in the area you might be in. These types of circumstances make it difficult to be motivated enough to put the effort in that may be needed to keep those DSLR batteries charged or the Laptop fired up to offload photos and back things up.

I have put a bit of thought into how to make this as easy as possible, while maintaining my own set of rules regarding self reliance.

IMG_7229

IMG_7238

The Apple MacBook Air 11″ is the smallest, lightest, most powerful unit in it’s class on the market. Being a non PC user, this is simply the ticket. The model I have is an older one; intentionally sought out in order to run Mac OSX Snow Leopard (my top choice in order to run Final Cut Pro 7 properly for video editing). It has a1.6ghz processor and 1g of RAM.. not much, but just enough to get the job done in the field. As a bonus, it has no optical drive and has a solid state HD, which means NO MOVING PARTS!

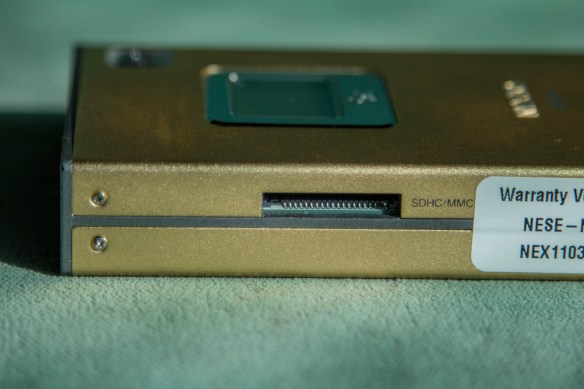

To offload photos, I have choices:  I carry a Nexto Extreme 500G HD that requires NO COMPUTER to operate. It has a button menu, it’s own battery, SD and CF card slots, and will offload your cards to it’s HD, and then give you a confirmation!  Then, depending on how much spare time I’ve had recently and how much the sun has been shining for photovoltaics, I can then choose to use the Laptop to back up this drive to another external drive. The one I have is a Toshiba USB model with 1TB storage.

IMG_7231

IMG_7233

Now, the solar panel I have is a beast… The one I used to carry was a Brunton 26 watt unit that was small and light, but it was always a problem keeping ipods and camera batts charged. This was back when I didn’t carry a laptop to back photos up. It was risky business in regards to my photos to say the least.

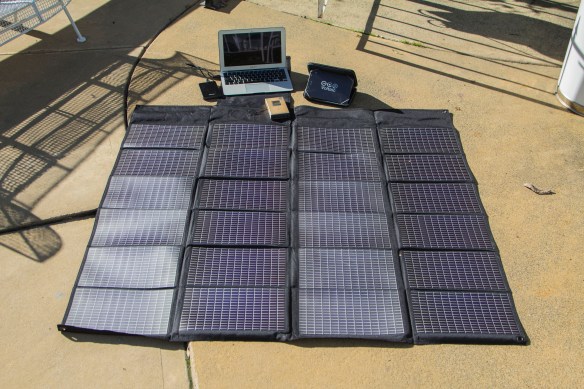

I now have a PowerFIlm 50 watt monster… It connects to a Voltaic 60 watt multi voltage battery. The entire package is certainly heavy; no one ever said that doing this stuff on yer own, way, way out for extended periods of time was going to be easy, did they?

IMG_7240

The battery can connect to the panel with a long cord, so as to be in the tent at camp, while the panel is out there doing it’s job.  There is a switch on the Voltaic to select voltages as 12v, 16v, or 19v, depending on your laptop needs. A full sized MacBook Pro would use the 19v setting, but the MacBook Air uses the 14v setting. I use the 12v setting to plug in my Canon LP-E6 car charger for the 60D batteries. Voltaic will even, for just a couple of more bucks, supply you with an in house-made adapter for the mag-safe on apple laptops, which will, in turn, connect to the Voltaic battery. Sweet!  The voltaic unit also has a USB port to run your phone, ipod, etc. I use tent stakes to lay out the panel in camp, run the long cord to the tent, and all gets charged, assuming there is sun.

For the majority of my USB charging needs (Nexto unit, ipod, basic cell phone)  I have devised a system that was not too easy to set up, but now that it is up and running, it works like a charm.

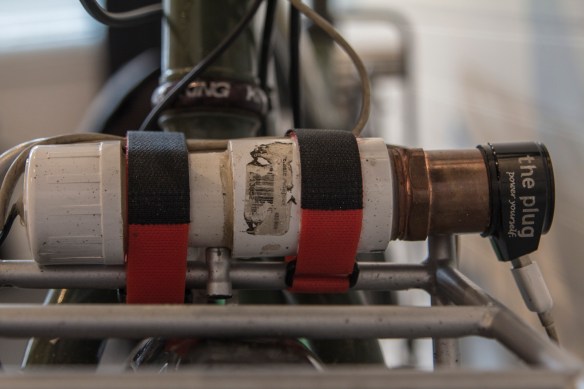

I begins with an IRD, disc only, 36 hole, 3 watt, 6 volt front generator hub, that I have laced to a Veloicity Chukker rim. The hub also features a clutch that can be turned to switch the unit off when it is not needed, extending it’s life, I hope.  In order to get 5 volt, 4.5 watt power from this unit, I purchased a german product called “The Plug II”. This adapter is designed to be installed in your head tube and the unit sits on top of your stem. To me, this is a piece of over engineered, overpriced, gadgetry. But I need one to do this, so I bought one and modified it to suit my needs. I didn’t want the unit permanently installed on my bike as it makes the whole front end of my ride even more complex than it already is, so I built an enclosure for the electronics and mounted the Plug unit to the end. I accomplished this utilizing copper and PVC parts from the local hardware store and mounted to my front rack with velcro straps, for a portable, bombproof USB charging unit. The unit then plugs into the IRD hub.

IMG_7272

IMG_7268

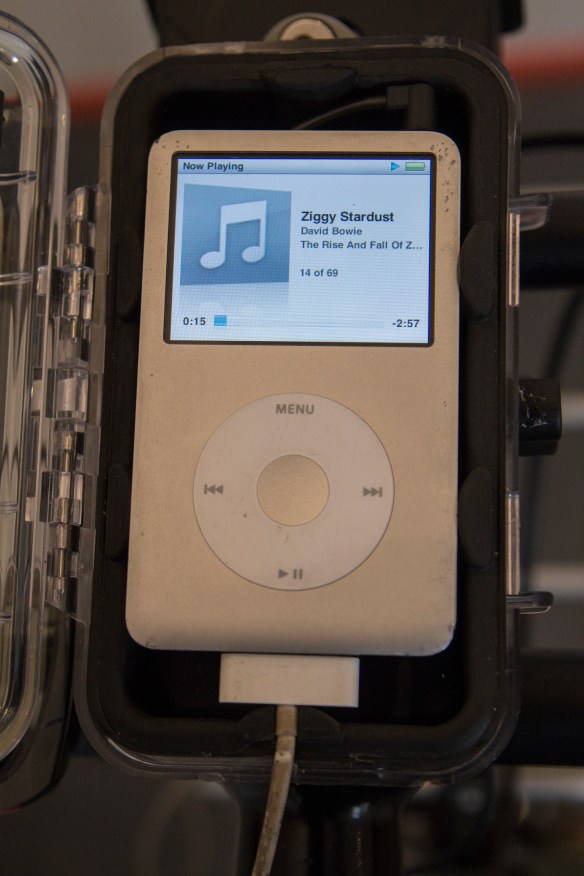

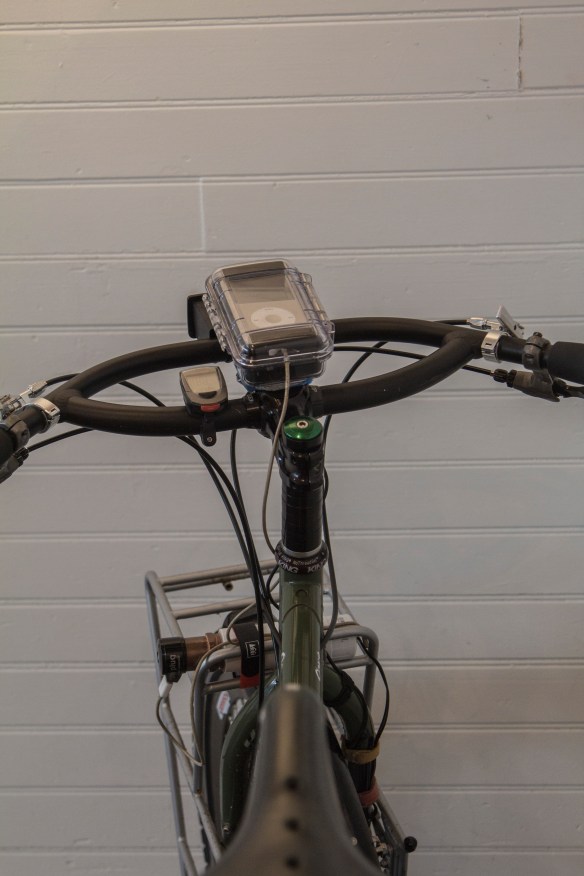

For my ipod, I have a Pelican case that, again has been modified to suit.  I mounted an aluminum plate to the back, drilled a small USB cable hole in the appropriate spot, and hose clamped it to the fake stem mount that I also made in order to accommodate the mounting of an Ortlieb handlebar bag to a Jeff Jone Loop Bar.

IMG_7267

IMG_7271

The Ortlieb requires utilizing the bar AND the stem for it’s rock solid, proprietary, mounting scheme. But, one cannot do this with a Jeff Jone Loop Bar, because it has 2 crossbars.  By cutting a stem in half, and using shims for the diameter, I was able to mount the bag to the most excellent Jones Bar. I have utilized other scenarios in the past, such as a second stem below they main stem, but this is sleeker, cleaner, and tricker, for sure!

IMG_7273

IMG_7269

IMG_7274

Now, my ipod, etc, are always plugged in and as long as I am in motion, they are charging. The solar panel is still the only way to charge everything else however.

I have some other thoughts on how to possibly rectify this, but that’s for another story.

Advertisements

8 thoughts on “Gear

  1. Ever have any problems with the IRD hub? Did you compare it to the Shimano or the SON 28, or any other one, for that matter? I have a Surly Ogre also and I’m slowly building it up for utility commuting and eventually, when I get up the nerve, touring. Nice writing, by the way. Jesse

  2. Hey, thanks for posting.. I simply use a padded semi soft case that goes in a stuffsack, then that goes in a dry bag. Then into panniers closest to wheel so that more stuff goes next to it for padding… Nothing too fancy. Don’t drop Yer bike!

    Cheers,
    Linus

  3. Thanks Linus! I will probably go with the Big Agnes 2.2 lb tent and big Agnes bag. I’m goin’ ultra light this time! Thnx for the info though. Lots of people have been patiently waiting for your latest adventure update. Cheers! Dana

  4. Hey Linus! A few gear questions if you don’t mind. How much does your Easton Hat trick tent weigh? And what degree sleeping bag do you have? And how much does it weigh? How bout a ground cloth? I have a very short window to get my gear before my Dive trip and typical me, doing research at the last minute. I hear Big Agnes makes a 1.2lb tent that is good quality, but I want different opinions from those actually touring. Thnx in advance for any info. Bike On! Dana

    • HI DANA! tHE HAT TRICK IS A THREE PERSON THAT WEIGHS ABOUT 5 LBS AND i LIKE IT. mY BAG IS A FEATHERED FRIENDS 20 DEGREE DOWN JOBBER AND IS PLENTY FOR ak IN THE SUMMER… gOOD LUCK WITH YOUR ADVENTURE!
